MSR100 USB Magstripe Swipe Card Reader

3 Track Programmable Magnetic Stripe card reader MSR100 For PC Or Mac

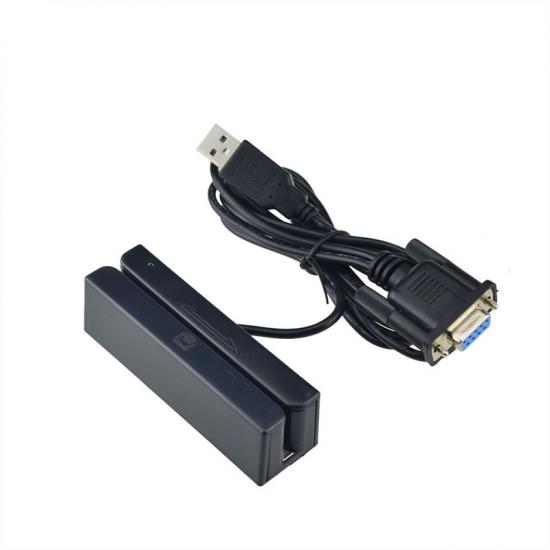

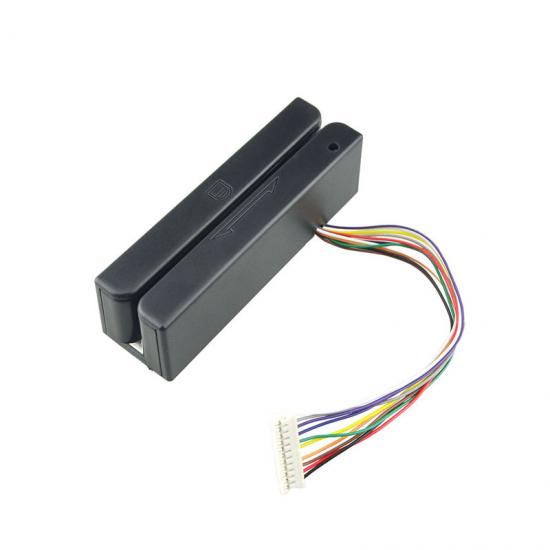

Interface : USB / RS232 / TTL / PS2

Track Data :  track 1 / track 2 / track 3

Application :  for taxi driver license / hotel access control / social security card

  • Brand:

    SCANNERVENDOR
  • Product Detail

  • specification

Effon  USB 3-Track Magnetic Stripe Card Reader POS Credit Card Reader Swiper MSR100


The single-head triple-track magnetic stripe card reader MSR100 is black, has a built-in USB cable to connect to the host system, It  can read 1 / 2 / 3 track track data of the magnetic card like credit card 、membership card, access control card .  Triple-track magnetic card readers can read and capture data from all three tracks typically present in a magnetic stripe to complete a transaction.

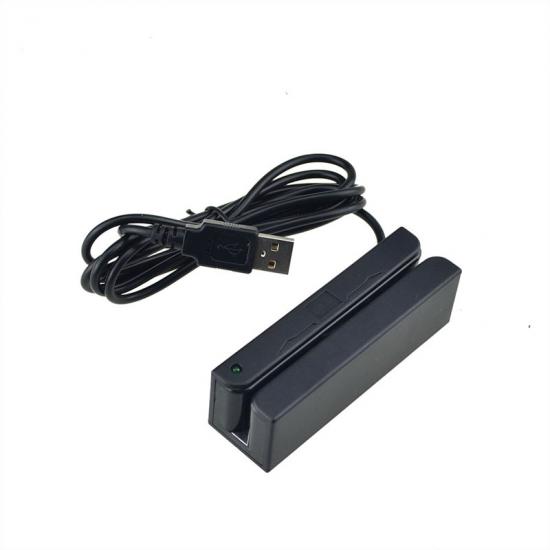

  • The built-in USB cable measures 6' long and can be plugged into the USB 2.0 port of a computer or another host system (sold separately) to transmit card data and power the magnetic card reader.


  • USB keyboard emulation enables the reader to transmit data to host systems and applications designed to receive keyboard input.


  • An LED indicator turns red to alert the user of a decoding error.





Specification


MSR100 Magnetic Stripe Card Reader


PCB size


Length:90mm, Width: 26mm, Height:28mm


Weight


100g


CPU


8bit MCU


Electrical


DC 5V ± 5% 65mA


Product Description


Small


ISO Standard Characters


Track1 210bpi, 79 Alphanumeric Characters
Track2 75bpi, 40 Numeric characters
Track3 210bpi, 107 Numeric characters


Performance


Swipe direction: Bidirectional
Free software & Manual: Yes
Free plastic rail/ Magnetic slot: Yes
Card thickness: Plastic 0.76 ± 0.08mm
Error rate: Less than 0.5%
Head function: Read only 1.5mm


Features


With indication of light
Low power consumption, good compatibility

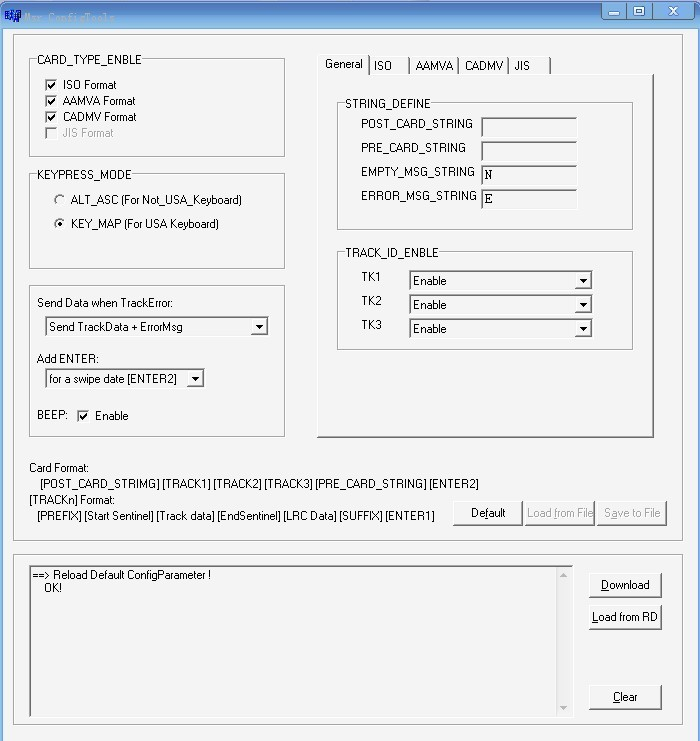

Easy Programmable


Cards Standard


ISO, AAMVA, CADMV


OS


MAC, Windows XP, Windows 7, Vista, Android


Communication


USB


Lifetime of Header


Lifetime of Header


Temperature


Operating Temperature: -10 ~ 50 C


Humidity


Relative Humidity: -20 %~ 70 % rh


Applications


Any movable data collection (Trade shows, Racing events)
Point of sales
Law enforcement (DMV card)
Attendance (Student ID, Membership card)
Conference Attendance
Classroom Attendance
Meeting Attendance
Door Locking Systems


send a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

03.Products

Related products
Passport Reader
MS430 Mrz OCR Passport Reader
MS430 mrz ocr passport reader is with OCR function, support to read ID cards and passport. It's widely used for duty-free shops and airports etc. can easily be integrated into various solutions such as kiosks, ticketing machines, (reverse) vending machines and many more. Type: Fixed Mount Scanner Symbologies: 1D/2D Reading Mode: CMOS Interface: USB1
smartwatch scanner
Wearable PDA EW02 2D
The Effon wearable PDA scanner EW02 is a kind of finger trigger Smartwatch barcode reader with several features for many industrial environment. System : Android 5.1 Scan Engine : Zebra SE4710 / SE2707, EM1350 Scan Method : trigger finger / scanning button Screen Display Size : 2.2 inch IPS full-laminated screen
Android Handheld Barcode Scanner
HS04 Android Mobile Computer
Android 8.1 4G LTE/Bluetooth/Wifi 1d/2d scanning IP66 Industiral Protection
Ring Barcode Scanner

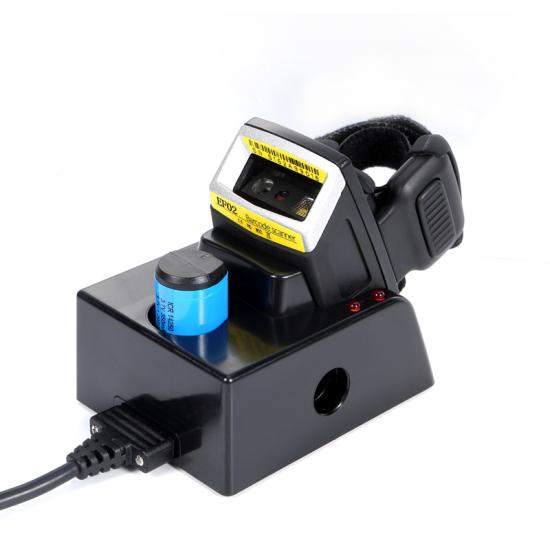

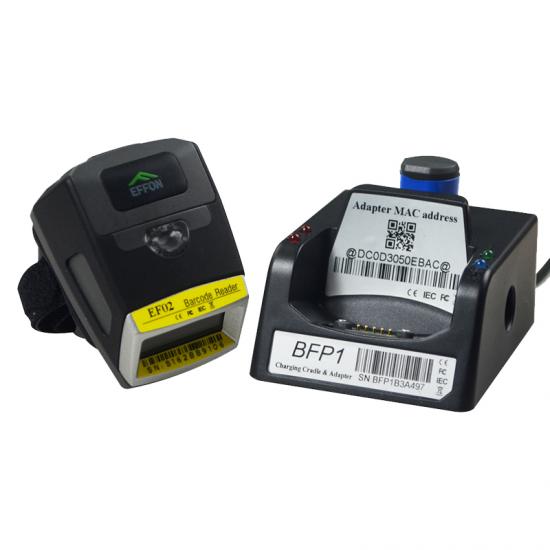

Bluetooth 2D Ring Barcode Scanner EF02
Effon EF02 Bluetooth Ring Scanner is the first indutrial IP65 ring scanner, providing extreme comfort. Product Type: Ring  QR  Scanner Scan Engine: SE4107, SE4750MR, SE5500 supports 2d / 1d barcodes Battery Capacity: Removable & Rechagrable 550mAh Industrial Features: IP65, shockproof Compatibility: Android / IOS / Windows
Wearable Ring Barcode Scanner

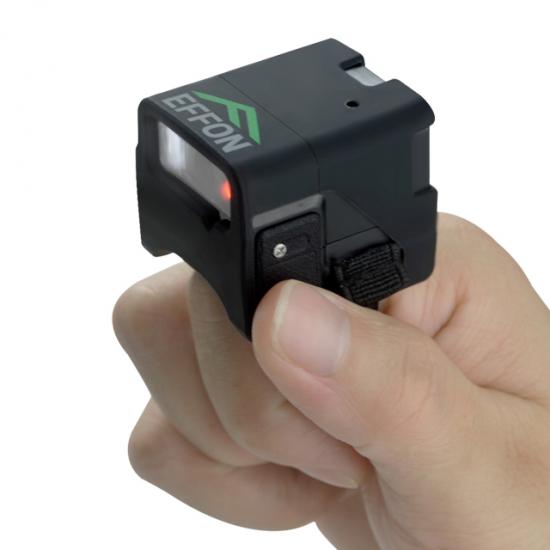

Wearable Touch Ring Barcode Scanner 1D TS02
