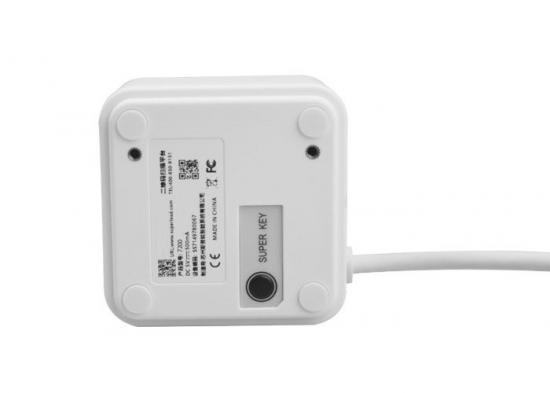

MS7200 2D Fixed Mount Scanner

MS7200 embedded scanning platform special for POS terminal/delivery locker/Vending machine


Barcode Type: 2D

Dimensions: 67mm x 67mm x 35mm
Interface Type: USB and COM

Optical Resolution: 752*480

Weight: 145g




  • Product Detail

  • specification

MS7200 2D Barcode Module is Designed for OEM applications, this high performance fixed mount barcode scanner can easily be integrated into various solutions such as kiosks, ticketing machines, (reverse) vending machines and hotel, etc.


Features:


High Scanning Performance

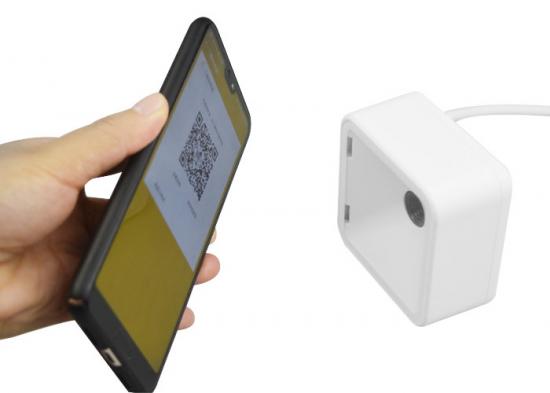

Support scan almost all common 1d/2d barcodes, including screen barcodes


Ease of integration
Compact and easy to integrate design. The small form factor enables easy integration into various solutions.


Plug & Play
Plug and play, no driver required


Auto Scan function
It can scan by a manual trigger or automatically

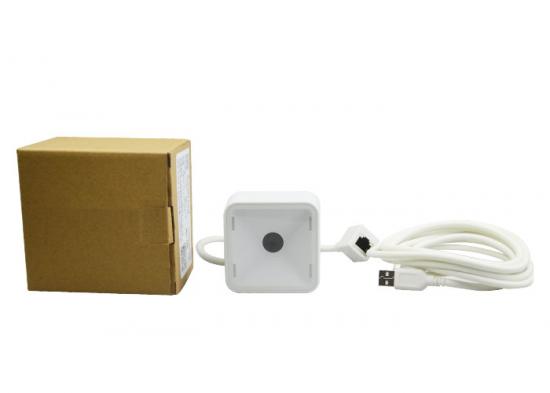

Package List:


1x MS7200 2D Barcode Scanner
1x USB Cable or RS232 Cable
1x User Manual

Physical Characteristics

Dimensions

67mm×67mm×35mmL×H×D

Weight

145g

Voltaget and Current

5 VDC ±10%@400mA

Performance Characteristics

ImagePixels

752 pixelsH×480 pielsV

Light Source

Aiming617 nm LEDillumination6500K LED

Field of View

45°H×35°V

Roll/Pitch/Yaw

360°,±65°,±60°

Print Contrast

25% minmum reflective difference

Symbology Decode Capability

1D

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

2D

PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec

Motion Tolerances

Up to 25 in.(63.5cm) per second

Interfaces Supported

USB, RS232

User Environment

Operating Temperature

32°to 122°F/ 0°to 50

Storage Temperature

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications:

Withstands 10Gs 0.06" double amp

Ambient Light Immunity:

Immune to normal lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.

Decode Ranges

Symbol & Density

Rang

100%UPCA (13 mil)

5mm-110mm

PDF417 (6.8mil)

30mm-50mm

DataMatrix (10mil)

0mm-50mm

QR Code (20mil)

0mm-100mm

Performance may be impacted by bar code quality and environmental conditions
