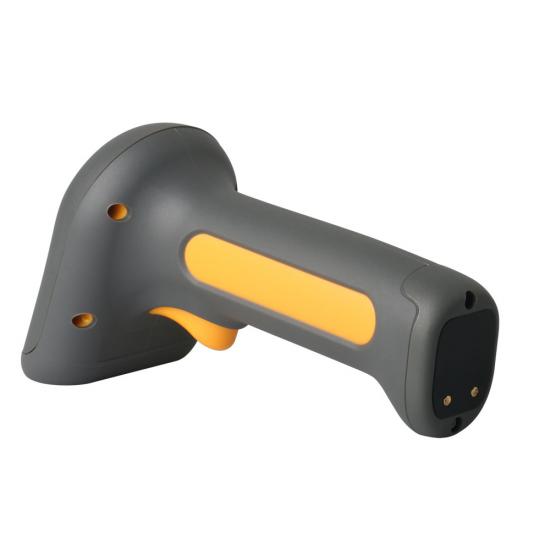

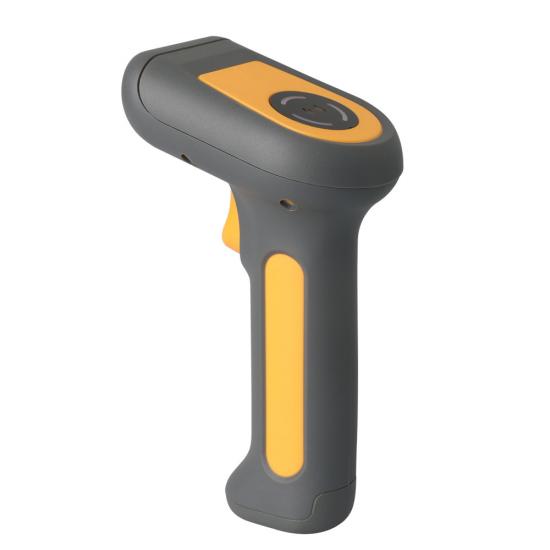

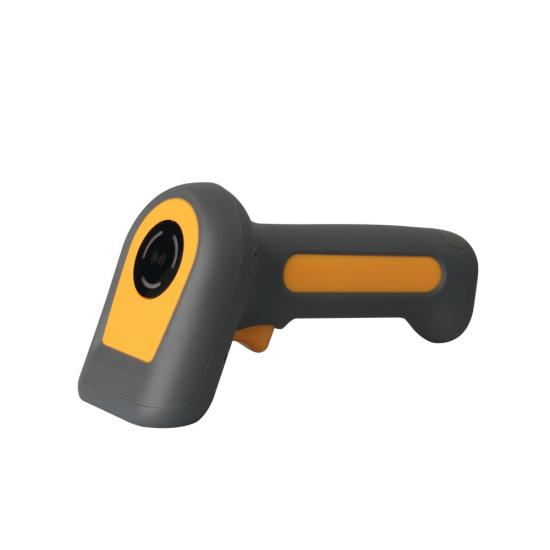

PTH5 is a wireless 2D handheld barcode scanner that can easily read barcodes on media such as paper, merchandise, and screens.
IP65 industrial grade, super sturdy; dustproof, drop-proof, waterproof, suitable for warehouse use.
Item: 2D Handheld Scanner Reads most 1D and 2D barcodes
Communication: wireless 2.4G transmission mode
Decoding speed: 100CM/S
Battery capacity: 5000mah
IP Grade: IP65 Industrial Rugged
Brand:
SCANNERVENDORProduct Detail
specification
With IP65 Industry grade, Ultra-rugged; Dust-proof, Drop-proof, and water-proof for warehouse use.
Feature:
|
Scan Type |
CMOS |
|
CPU |
ARM32-bit |
|
Pixel |
1.3M CMOS Global exposure |
|
Resolution |
≥3mil/0.076mm（PCS90%,CODE 39） |
|
Decoding speed |
100CM/S |
|
Depth of field |
50mm~900mm |
|
Scan Mode |
Trigger mode、Auto sense mode |
|
Scan angle |
Roll：±360°、Pitch：±60°or greater、Yaw：±55°or greater） |
|
Visual angle |
Horizontal 40°× Vertical 30° |
|
Print Contrast Signal |
≥25% PCS |
|
Ambient Light |
Dark environment, indoor natural light |
|
Wireless transmission distance |
2.4GHz,70meters; Bluetooth 30meters（Open distance） |
|
Storage |
350KB（over 20,000 Product code） |
|
Battery capacity |
5000mAh |
|
Battery charging time |
About 7 hours |
|
Continuous working time |
≥36hours |
|
Standby time |
1 month |
|
Symbologies |
1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Codabar（NW-7），GS1 Databar(Omnidirectional, Limited, Expanded)， etc. 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， Aztec，etc. |
|
Operating temperature |
0℃ to 50℃ |
|
Storage temperature |
-30℃ to 60℃ |
|
Humidity |
5% to 95%（non-condensing） |
|
Drop Height |
1.5m |
|
Temp. Test |
30 minutes for high Temp., 30 minutes for low Temp., |
|
High Temp. |
60℃ |
|
Low Temp. |
-20℃ |
|
Transport vibration Test |
10H@125RPM |
