HS02 Wireless Handheld 2D Barcode Scanner

HS02 Wireless Bluetooth Handheld 2D Barcode Scanner, built-in 1000mah lithium battery in full power whose standby time can last for15 days and not only work continuously for to 10 hours.


Type: Wilress Bluetooth Handheld 2D Barcode Scanner

Barcodes:1d/2d

Battery: 2000mAh Rechargeable Battery

Offline Mode: yes

Charging Crable: yes

Compatible: Android/IOS/Windows




  • Product Detail

  • specification

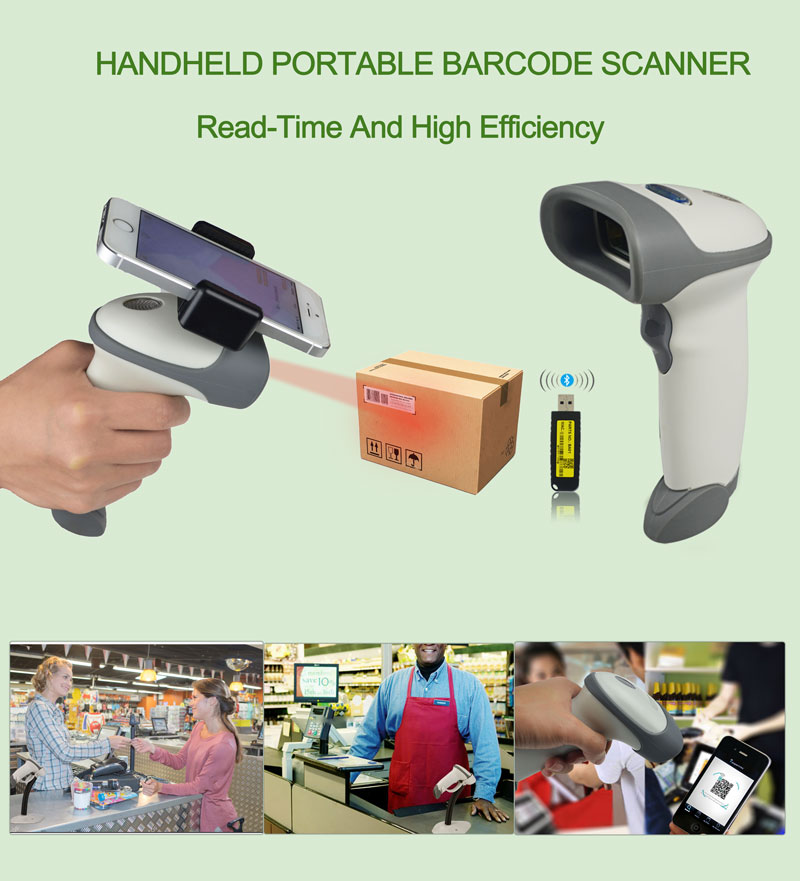

HS02 Handheld scanner designed independently by Effon, aimed at offering convenience to supermarkets, clothing store and store cash register. It's simple to use and support wireless Bluetooth and serial port connection as two optional modes. Its built-in high-speed QR code barcode scanning engine can scan 1d&2d barcodesBuilt-in 1000mah lithium battery in full power whose standby time can last for15 days and not only work continuously for to 10 hours. Not connecting with any devices, it also can store 6000 barcodes of 15 bytes


Cell phone jacket holder suit for 4-7'''s a cell phone, transferring and checking data



Features:


Scan Performance
Using the Zebra scan engine for almost all 1d/2d barcodes. Including broken barcodes

Long Distance Scanning
Up to 2.5 meters long scan distance (depending on the size of the barcode)

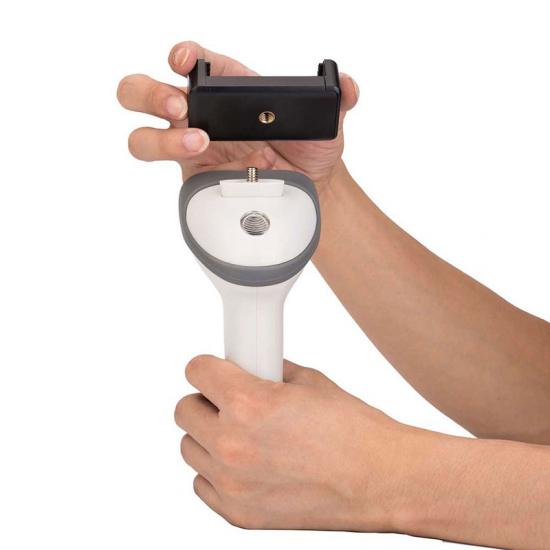

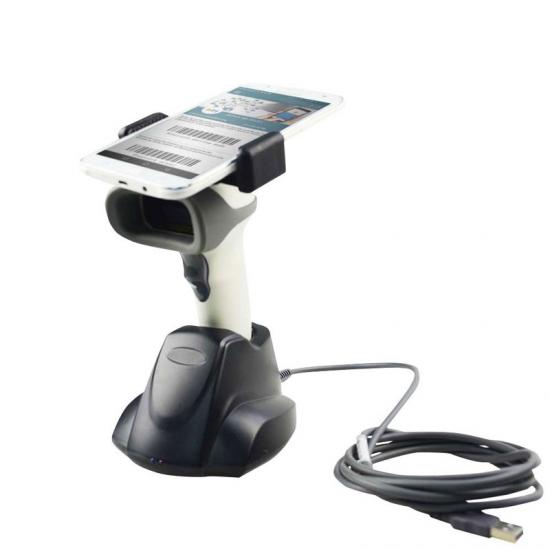

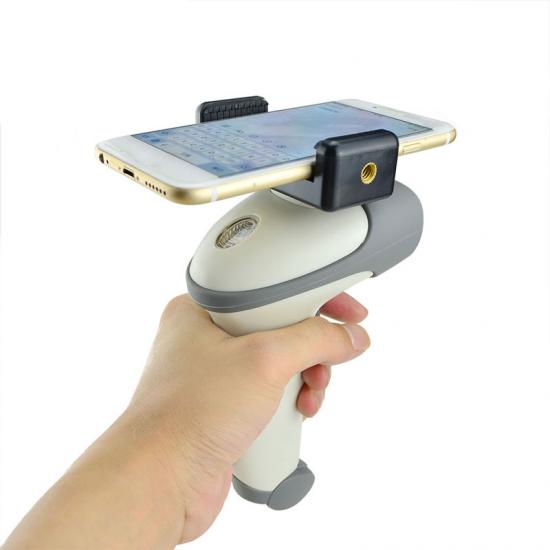

Come with Mobile holder
Hold your smartphone on the scanner, make your scanning on real-time

Ultra-large capacity battery
Built-in 2000mAh Rechargeable battery. After a full charge can support more than 15 hours working

Offline Mode
Offline scan barcodes and can save it as CSV/TXT

Compatible
Android/IOS/Windows






Why Choose US:


1. The most favorable price and Right products.

2. Online technical support and software upgrade

3. After-Sale Services: 2 years quality guarantee, within the first year, if there is any quality problem, we bear the shipping charges back and forth and offer repair services for free.

5. More than 10 years experience technical team serve you at any time

6. Small order, OEM/ODM Acceptable



We are sincerely looking forward to building a business relationship with you!





Technical Parameters:


Product name

HS02 Wilress 2D Barcode Scanner

Model name

HS02



 Dimensions



Length:168mm, Width: 68mm, Height:80mm

Weight

150 grams

Electrical

Power: DC5V Typical: 300mA DC5V

CPU

32bit ARM CPU

Data storage

100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).

Working mode

Bluetooth mode, offline mode and RS232 mode(optional)

Scan mode

Manual mode, Continuous, Host, Sense mode

Ambient illumination

0107,639 lux







Scanner performance

Sensor Type: 640 (horizontal) × 400 (vertical) pixels

Light:  610nm LED

660nm red LED

Scanner Angle: ±60°,±60°,±360°(skew, pitch, Roll) Field of view: Horizontal: 42° , Vertical: 28°

Contrast: 20%











Battery power

Internal Battery: Rechargeable 2000mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:

Continuous trigger

scanning interval

Decoding number

Working time

1S

10325

2.9hours

5S

6006

8.3hours

10S

3871

10.7hours

Charge time: About 2 hours















Barcode Type











1D

UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,

Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of

5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128

Emulation Mode for UCC/EAN Composite Codes





2D

PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post,

Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

Decoding depth &

Code 39

51mm -162mm (5mil);
