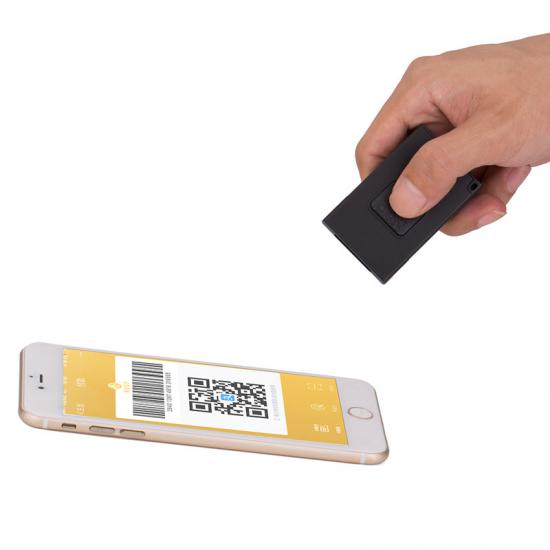

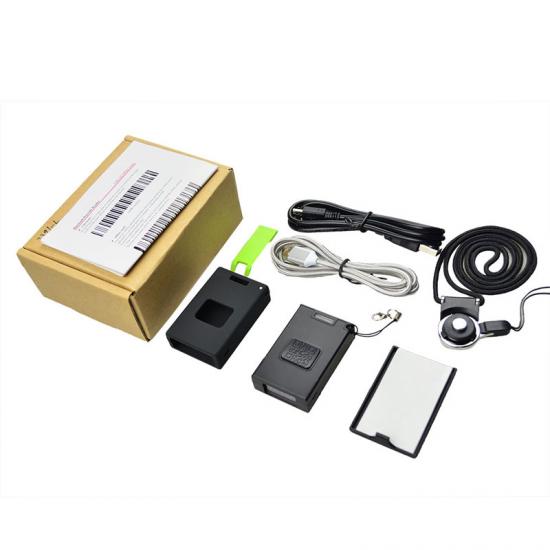

MS3392 Wireless 2D Barcode Scanner

Specification

MS3392-M 2D Bluetooth barcode reader

 Mechanical

 Length:60.0mm, Width: 37.8mm, Height:14.6mm

Weight

36g

Electrical

Power: DC5V Typical: 230mA DC5V

CPU

32bit ARM CPU

Data storage

100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).

Working mode

Bluetooth mode, USB mode, offline mode and RS232 mode(optional)

Scan mode

Manual mode, Continuous, Host, Sense mode

Ambient illumination

0~100,000 lux

 Scanner performance

Sensor Type: 640 (horizontal) × 400 (vertical) pixels Light: 610nm LED

660nm red LED

Scanner Angle: ±60°,±60°,±360°(skew, pitch, Roll) Field of view: Horizontal: 42° , Vertical: 28°

Contrast: ≥20%

 Battery power

Internal Battery: Rechargeable 800mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below:

 Charge time: 3.5~4 hours

Barcode Type

1D

UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,

Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of

5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar  Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128

Emulation Mode for UCC/EAN Composite Codes

2D

PDF417, MicroPDF417, Code 128 Emulation, Data  Matrix, Maxicode, QR  Code,  Micro

QR, Aztec,  HanXin,  US  Postnet,  US  Planet,  UK  Postal,  Japan  Postal, Australia Post,

Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

Decoding depth & Max. Resolution

(1 mil = 0.0254 mm)

Code 39

Code 128

PDF417

100% UPC

Code39

Data Matrix

QR CODE

51mm -162mm (5mil);

63mm - 127mm (5mil)

63mm - 160mm (6.6mil)

45mm - 228mm (10mil)

50mm - 317mm (13mil)

50mm - 495mm (20mil)

38mm - 243mm (20mil)

38mm - 279mm (20mil)

Code 128

63mm -127mm (5mil);

PDF417

63mm -160mm (6.6mil);

PDF417

45mm - 228mm (10mil);

100%UPC

50mm -317mm (13mil);

Code 39

50mm - 495mm (20mil);

Data Matrix

38mm - 343mm (20mil);

QR Code

38mm -279mm (20mil).

Communication

Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)

OS

IOS, Android, Windows, Mac

Certificate

CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.5m drop test(500 times).

Laser safety

IEC60825-1-2007, Class 1

Temperature

Operating: -20°C to 60°C (-4°F to 140°F);

Storage: -40°C to 70°C (-40°F to 158°F)

Humidity

5% to 90% (non-condensing)
