Rugged Wearable Mobile Computer Android WT04

WT04 Wearable Computer Android was designed while bearing in mind the hands-on nature of the daily tasks of workers from various industries such as warehousing and manufacturing to logistics and transportation. With WT04, working hands-free is actualized.

Product Type: 4.0 inch an industrial data collector
IP Grade: IP65
Battery Capacity: 2850mAh replaceable battery with charger
Communication: 3G/4G, Wi-Fi and Bluetooth 4.1

  • Brand:

    SCANNERVENDOR
  • Product Detail

  • specification

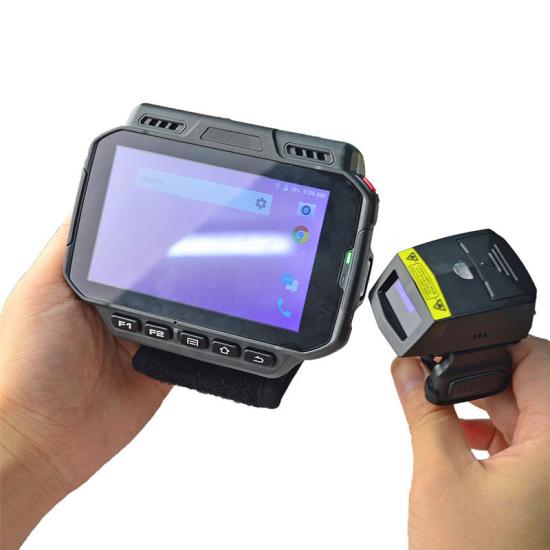

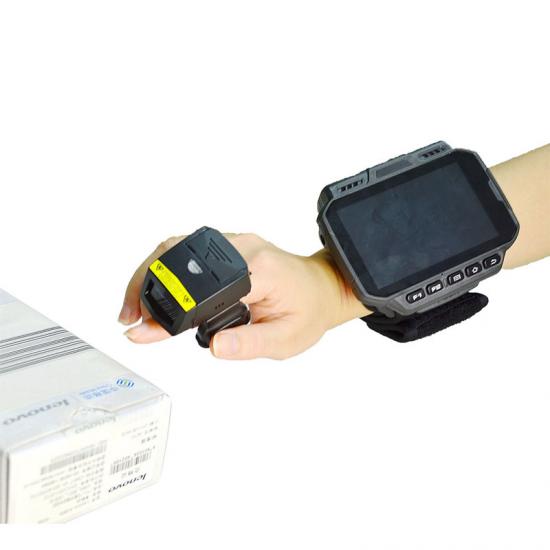

Wearable Armband WT04  can hold mobile device at most 7 inch to replace tranditional handheld terminal together with wearable scanner for warehouse picking . Such combination assures users' cost-effective . Wearable computer WT04 can work like an android phone, IP65 grade assures customers the ruggedness, free us your hands to recuce workload .


Features:


High Display Touch Sensitivity

4.0” display screen supports response from multiple fingers and gloves for convenient use during work.


Robust and Durable

Operates in a wide range of temperatures, humidity and has been drop tested from a height of 1.5m. The good sealing assures that the device is protected from dust ingress  water for workining under different outdoor conditions.


Highly Optimised Power System

2850mAh lithium-ion battery provides over 10 hours of operation and requires less than 4 hours of charging.


Realise Multiple Functions

WT04  with additional devices such as the Bluetooth electronic scale, mobile printer and ring scanner for increased convenience and to serve additional functions.


High Speed Connectivity

Fast, stable and reliable wireless connectivity for devices with the 4G and 3G cellular radio, 802.11 a/b/g/n Wi-Fi and Bluetooth 4.1.


Camera

MP camera with LED flash and auto-focus function; Support camera scanning.


Technical Parameters:

Specification
WT04 Wearable Data Terminal
Basic Characteristics
OS
Android 10.0
CPU
Quad-Core 1.2GHz
Display
4.0 inch TFT-LCD WVGA (480×800) color screen
Panel
Support Multiple finger touch, gloves touch.
Internal storage
RAM: 1GB/2GB
ROM:8GB/16GB
Dimensions
Length:118mm, Width: 91mm, Height:33mm
Weight
273g (Included battery and wristband)
Buttons
Context Button,Home Button,Back Button,2 User definable buttons
(F1, F2) , Button,power button
Main Battery
Rechargeable 3.8V 2850 mAh
Charging time
No more than 4 hours
RTC Battery
Real time clock battery
Radio Communication
WIFI
802.11 a/b/g/n wireless communication
Bluetooth
Bluetooth 4.0 HS low energy
Chinese Version
4G TDD-LTE:Band 38/39/40/41 FDD-LTE:Band 1/3
3G UMTS(WCDMA)/HSPA+/DC-HSDPA:850/900/2100MHz
2G GSM/EDGE:850/900/1800MHz
International Version
4G TDD-LTE:Band1/2/3/4/5/7/8/20/28A/28B
3G UMTS(WCDMA)/HSPA+/DC-HSDPA:850/900/1900/2100MHz
2G GSM/EDGE:850/900/1800/1900MHz

Camera
8MP  camera   with   LED   flash   and   auto-focus   function;Support
camera scanning
GPS
GPS, A-GPS,BDS
Slot
3.5mm Audio port, 9PinMagnetic pogo pin(With USB and charging
functions,Support wired scanner)
Interfaces 3.5mm Audio port, 9PinMagnetic pogo pin(With USB and charging
functions,Support wired scanner)
Audio Loadspeaker, Microphone
Standard
Accessories
Power  adaptor,USB-Magnetic  pogo  pin  data  cable,Instructions  ,
Wristband
Optional
Accessories
Battery charger, ring scanner
User Environment
Operating
Temperature
 -10℃~50℃
Storage
Temperature
-20℃~70℃
Humidity
 5%RH—95%RH  (non-condensing)
Drop Durability
1.5m
