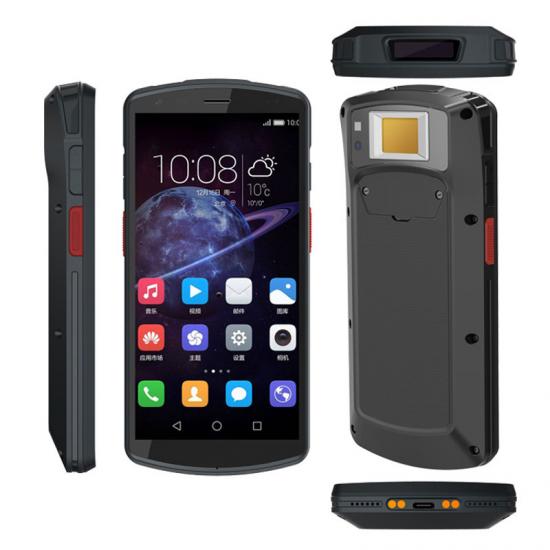

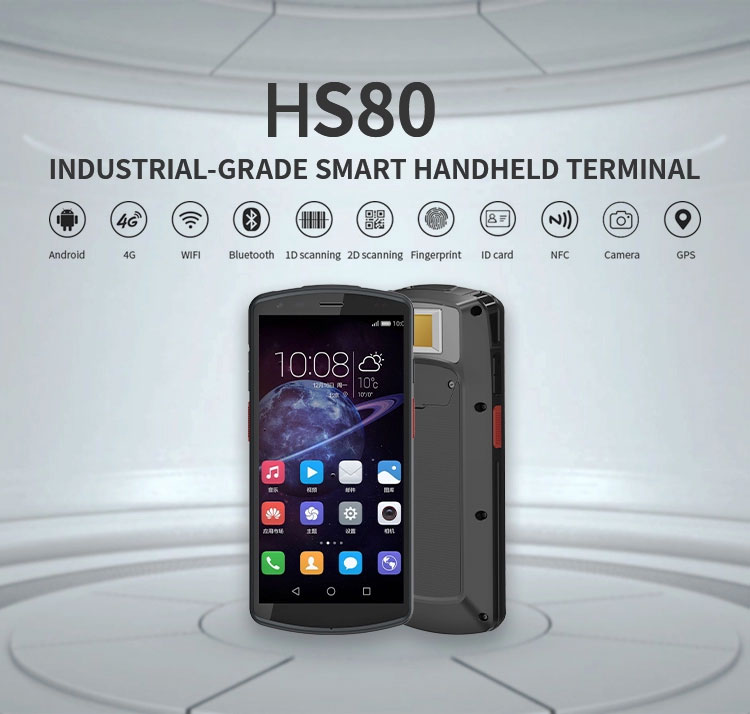

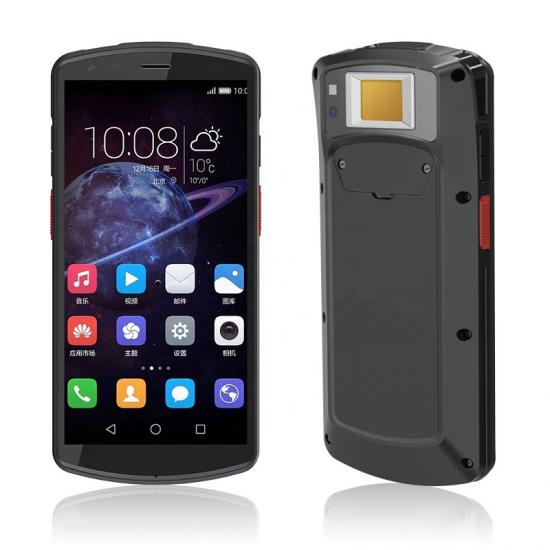

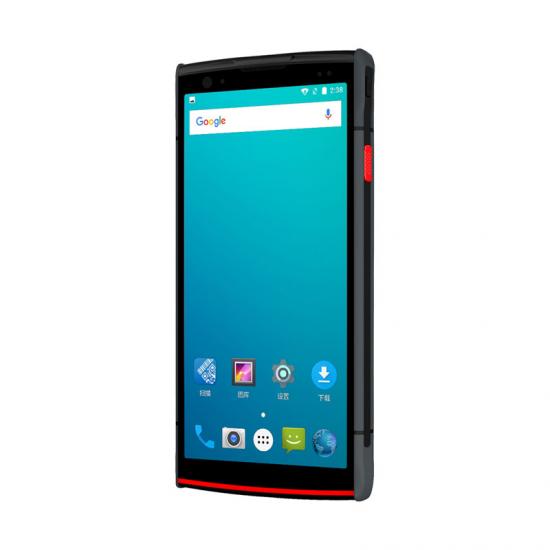

Mobile Data Terminal Android Handheld Scanner HS80

Android 9.0

5.7Inch HD full screen
1D/2D Barcode Scanner
Bluetooth/NFC/4G
5000mah Li-on Battery

Inquiry now

Product Detail
specification

Android Terminal HS80 is equipped with superior performance Honeywell N6603 2D scanning engine, it can read 1D and barcodes accurately and promptly, even tainted, damaged, blurred barcodes, and 20 barcodes on display screen has been used widely for express delivery, distribution centers, logistic management, car sales management, supply chain management, anti-counterfeiting track and trace management, etc.

Industrial-grade 5.7-inch fingerprint second-generation card handheld with Android 9.0 system

Functions include: Honey 2D barcode scanning, NFC, fingerprint recognition, second-generation certificate verification, support for GPS

Application areas: traffic police law enforcement, station ID card inspection, traffic police second-generation certificate inspection, police pass

Communication methods include: dual-band WIFI (2.4GHz/5GHz), 4G full Netcom,

Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS

Product parameters
Performance
Octa core
CPU	Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor
RAM+ROM	3GB+32GB
Expand memory	Micro SD(TF) Supports up to 128GB
System	Android 9.0
Data communication
WLAN	Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol
WWAN	2G：GSM（850/900/1800/1900mhz）
	3G：WCDMA（850/900/1900/2100mhz）
	4G：FDD:B1/B3/B4/B7/B8/B12/B20
	TDD:B38/B39/B40/B41
Bluetooth	Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters
GNSS	Support Gps, Galileo, Glonass, Beidou
Physical parameter
Dimensions	159mm×75mm×18mm
Weight	＜500g (Depends on device function configuration）
Display	5.7 inch IPS color display with resolution 720*1440
TP	Corning gorilla glass, Supports multi-touch Supported gloves and wet hands
Battery capacity	Equipped with ID card function, battery (3.8V 3200MAh)
	Rechargeable polymer battery (3.8V5000MAh)
	Standby time >350 hours
	Working time > 12 hours
	Charging time 3-4H, Using standard power adapter and data cable
Expansion Card slot	Nano SIM card x 1 , TF card × 1
Communication interface	Type-C USB x 1, OTG
Audio	Speaker (mono), Microphone, Earpiece
Keypad	Power button, Volume +/- button,Scan button × 2 Handle scan button ×1
Sensors	Gravity sensor, Light sensor, Proximity sensor, Vibration motor

Data collection
Barcode scanning (Optional)
2D Imager scanner	Honeywell N3603
2D Symbologies	PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, Maxicode,Hanxin Code,etc.

Camera
Rear camera	13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting
Front camera	2MP color camera

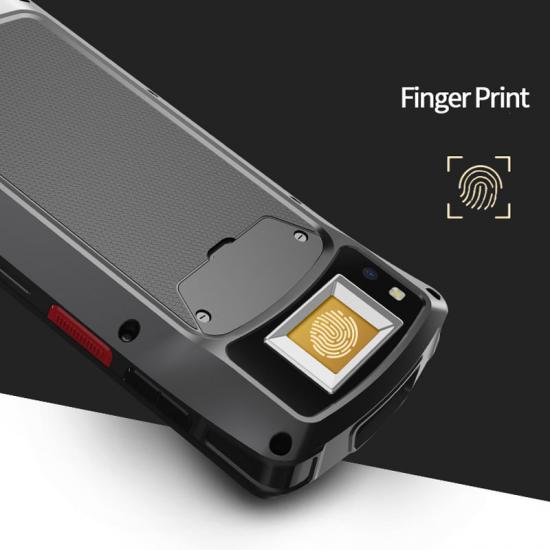

Authentication fingerprint (Optional)
Frequency	Configure TCS semiconductor sensor with live identification technology
Collection area	18.81x13.54 mm
Resolution	508 dpi, 8-bit grayscale,256*360
Extraction format	BMP / ISO
Secure encryption	AES, DES key encryption for host communication channel
Capacitive fingerprint (Optional)
Frequency	120MHz
Collection area	12.8x11.6 mm
Resolution	508 dpi, 192*192
Extraction format	BMP
Secure encryption	Open code communication instruction,customized data encryption
Fingerprint (Optional)
Collection area	10.5x11.5mm
Resolution	508 dpi,
Secure encryption	Support fingerprint unlock
ID card identification (Optional)
Radio frequency technology	Comply with ISO/IEC 14443type B standard, and "GA 450-2003 desktop resident ID card reader general technical requirements", "1GA450-2003 desktop resident ID card reader general technical requirements first revised but (draft)"
Security module	ID verification system dedicated module
Distance	0~5cm
Reading use	＜1.55
Frequency	13.5MHz±7kHz
NFC (optional)
Frequency	13.56MHz
Protocol	Support ISO14443A/B, 15693 agreement
Distance	2cm-5cm
User environment
Operating temperature	-20℃ - 55℃
Storage temperature	-40℃ - 70℃
Environment humidity	5%RH--95%RH(no condensation)
Drop specification	6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature
Rolling test	500×0.5m rolling for 6 sides
Sealing	IP66
Accessories
Standard	Adapter, Data cable, Protective film, Instruction manual

send a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Mobile Data Terminal Android Handheld Scanner HS80

Tags :

categories

New Products

03.Products

Related products

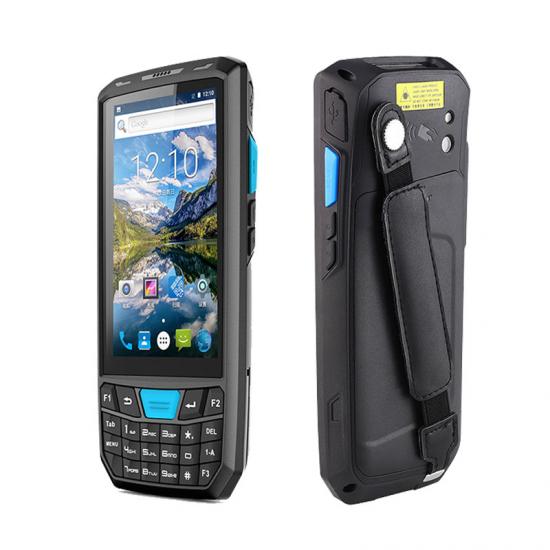

HS03 Android Handheld Barcode Scanner

HS03 Rugged Android Handheld Computer 5.0 inch IPS Screen Android 8.1 System 1D/2D Barcode Scanner Bluetoothe/4G/NFC

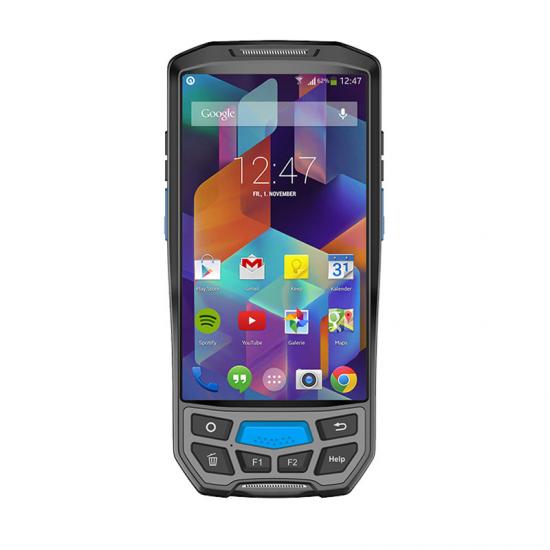

HS04 Android Mobile Computer

Android 8.1 4G LTE/Bluetooth/Wifi 1d/2d scanning IP66 Industiral Protection

HS50 5.5inch Android Handheld Computer

· High-Speed Octa-Core CPU · Fast Charging · Android 9.0 OS · 5.5 inch IPS Display · Removable Battery 4200mAh

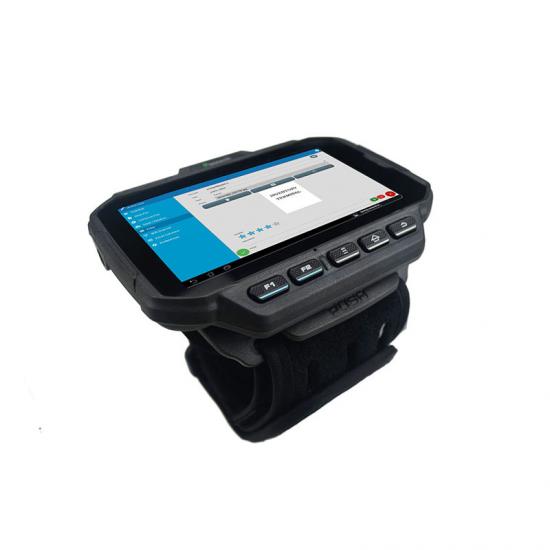

Rugged Wearable Mobile Computer Android WT04

WT04 Wearable Computer Android was designed while bearing in mind the hands-on nature of the daily tasks of workers from various industries such as warehousing and manufacturing to logistics and transportation. With WT04, working hands-free is actualized. Product Type: 4.0 inch an industrial data collector IP Grade: IP65 Battery Capacity: 2850mAh r1

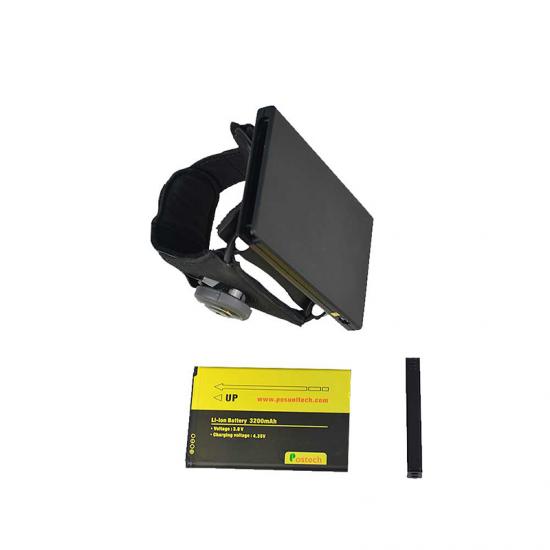

Wearable Armband WT01S / WT02S

WT01S / WT02S is a wearable armband that can hold 5 " 6 " 7" mobile device. There will be Micro-usb / type-c cable for the android device to connect with ring scanner . Product Type : Wearable armband Battery Capacity : 3200mAh replaceable battery Rotation : : 360 degrees for left / right hand Wrist Strap : adjustable wrist strap for different size1

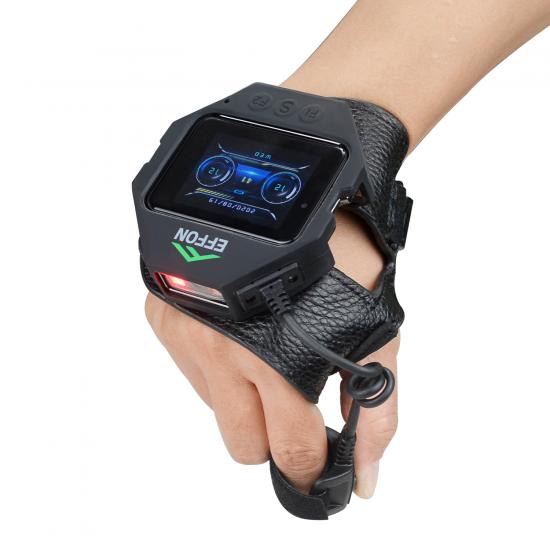

Wearable PDA EW02 2D
